Mikrotik RB1100AHx4

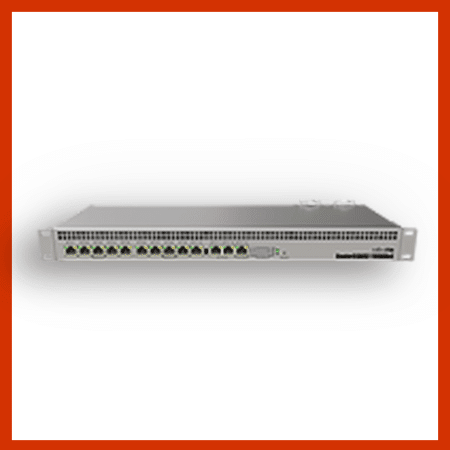

Introducing the RB1100AHx4, a high-performance router featuring 13 Gigabit Ethernet ports. It is powered by an Annapurna Alpine AL21400 CPU with four Cortex A15 cores, each clocked at 1.4GHz, providing a maximum throughput of up to 7.5Gbps. This device also supports IPsec hardware acceleration, achieving speeds of up to 2.2Gbps with AES128 encryption.
The unit comes in a 1U rackmount case, includes an RS232 serial port, and features dual redundant power supplies that support -48v DC telecom power and 802.3at/af standards
Specifications
| Details | |
|---|---|
| Product code | RB1100x4 |
| Architecture | ARM 32bit |
| CPU | AL21400-1400-A0-E-1AN-8-C |
| CPU core count | 4 |
| CPU nominal frequency | 1.4 GHz |
| Dimensions | 444 x 148 x 47 mm |
| License level | 6 |
| Operating System | RouterOS |
| Size of RAM | 1 GB |
| Storage size | 128 MB |
| Storage type | NAND |
Powering
| Details | |
|---|---|
| Max Power consumption | 20W |
| PoE in | 802.3af/at |
| PoE in input Voltage | 20-57 V |
| Number of AC inputs | 2 |
| AC input range | 100-240 V |
| Number of DC inputs | 2 (2-pin terminal, PoE-IN) |
| 2-pin terminal input Voltage | -48, 12-57 V |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 13 |
Peripherals
| Details | |
|---|---|
| Serial port | RS232 |
Other
| Details | |
|---|---|
| Current Monitor | Yes |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
